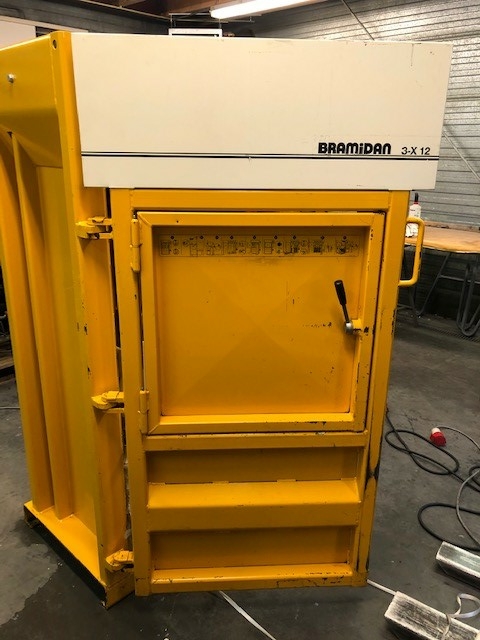

Bramidan 3-X 12 Waste Baler for plastic waste

Bale weight approx 80-120kg
Dimensions WxDxH (mm) 1245 x 775 x 1890
12 Tonnes press force
Wide opening for large load capacity
Low in height
Cross cylinder design ensures stable compression
Low Maintenance

Technical details
Model 3-X (12)
Press force (t) 12
Power supply 2×230/400V 50Hz 25/16A
Motor (kW) 4.0
Noise level (dB) 68
Cycle time (sec) 18
Dimensions WxDxH (mm) 1245 x 775 x 1890
Weight (kg) 835
Filling opening WxH (mm) 715 x 715
Filling height (mm) 735
Chamber height (mm) 1230
Stroke (mm) 780
Bale size WxDxH (mm) 800 x 600 x 600
Bale weight cardboard approx (kg) 80-100
Bale weight plastic approx (kg) 100-120
