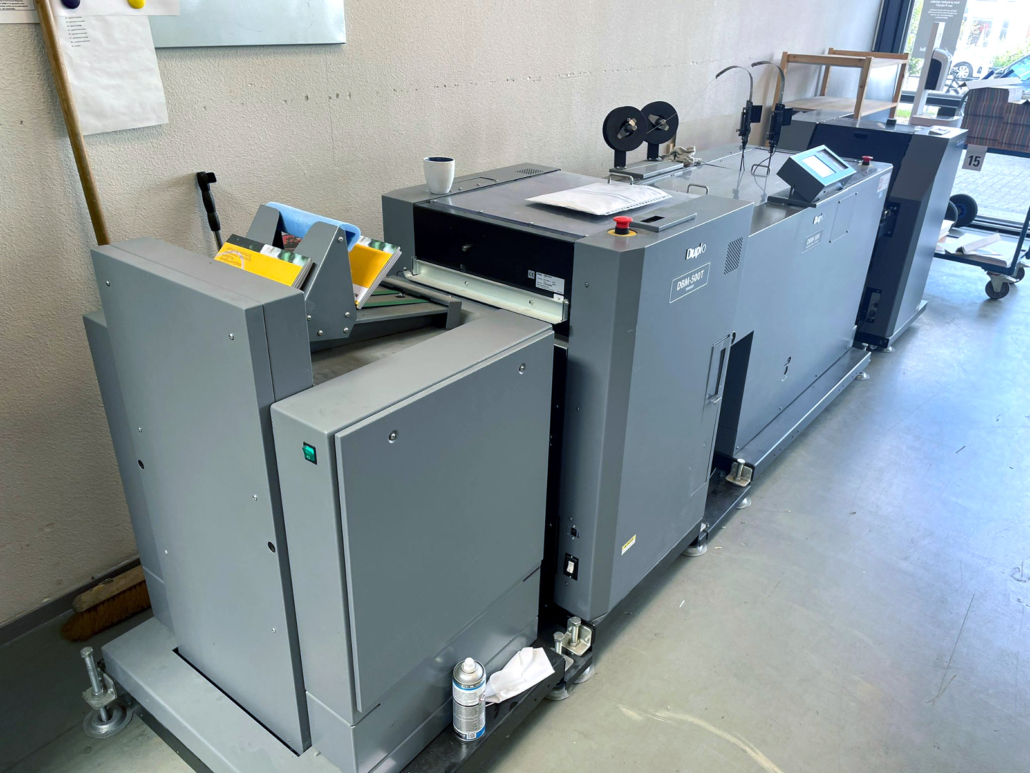

Duplo DBM-500 booklet maker

Reference  119910
Year  2007
Specifications

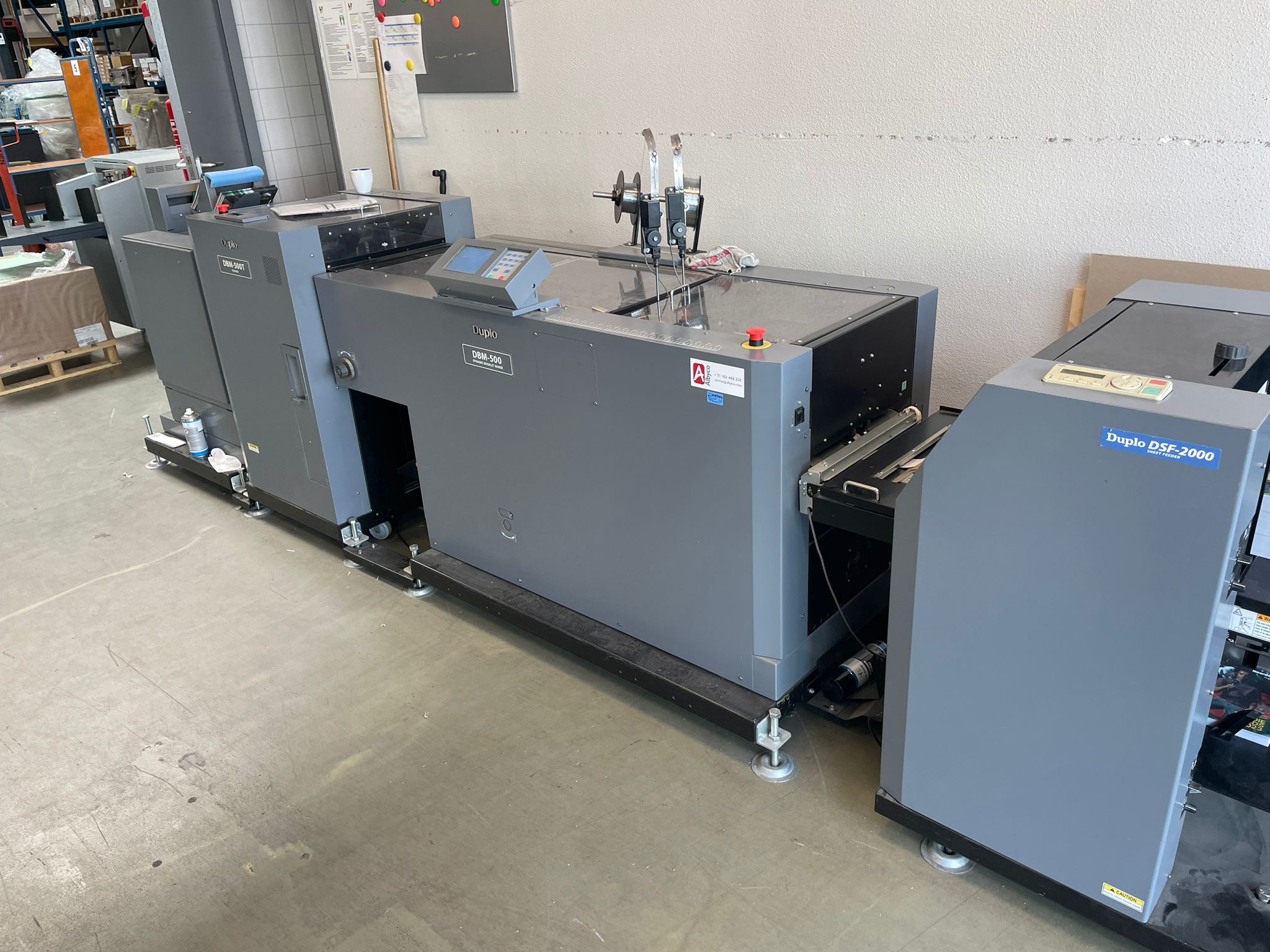

Duplo DBM-500 dynamic booklet maker for square spine finish booklets, with speed of up to 2600 booklets per hour.

Equipped with:

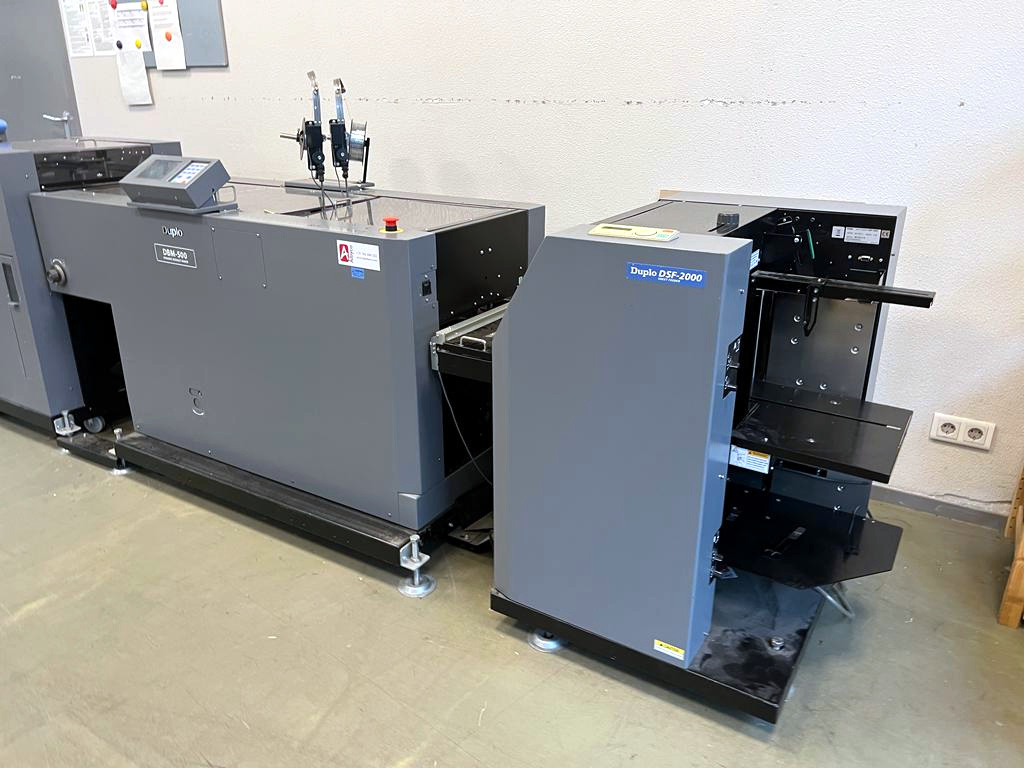

– DSF-2000 sheet feeder (year 12-2006)

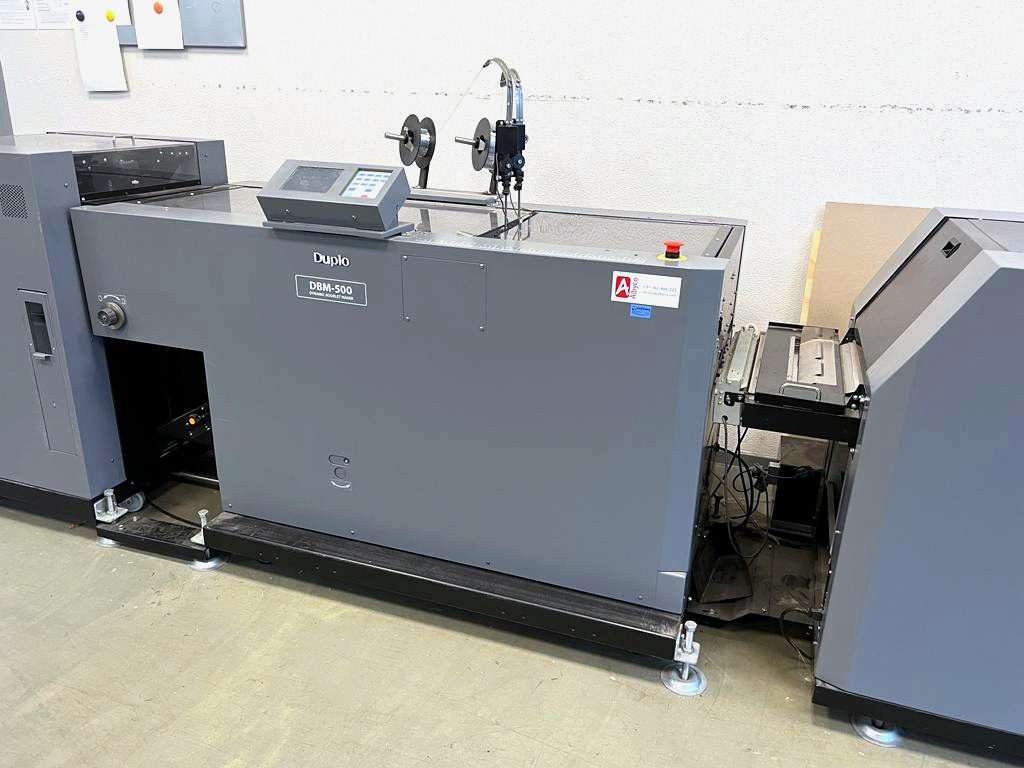

– DBM-500 dynamic booklet maker with 2 Hohner 43/6 S stitching heads (year 03-2007)

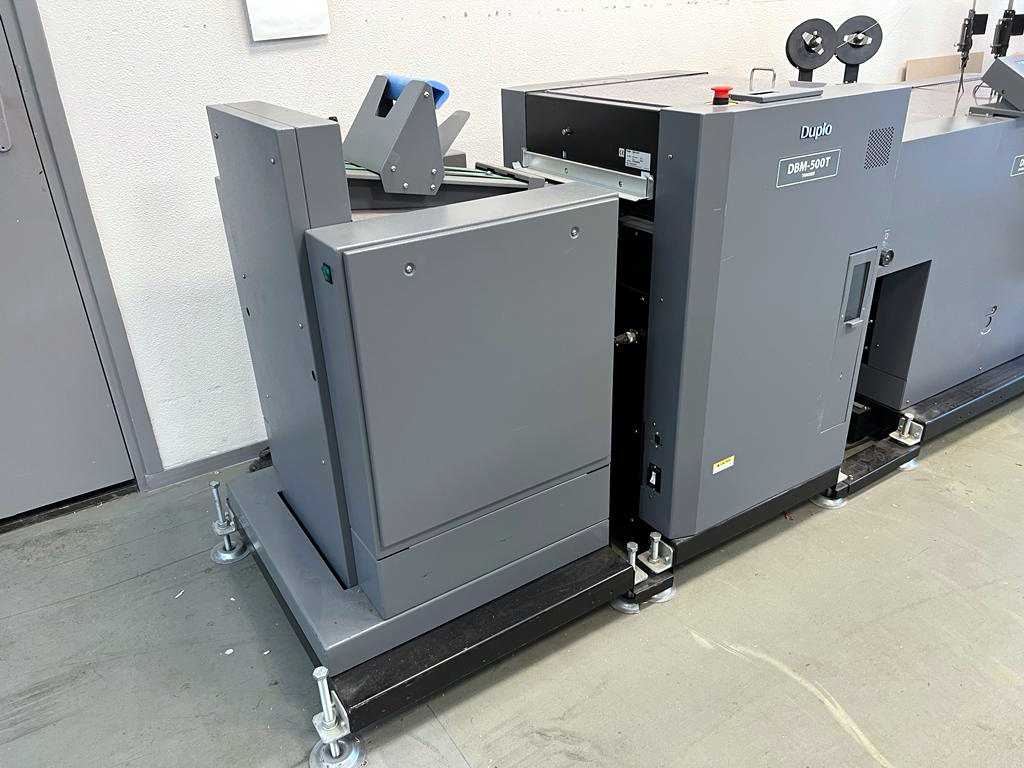

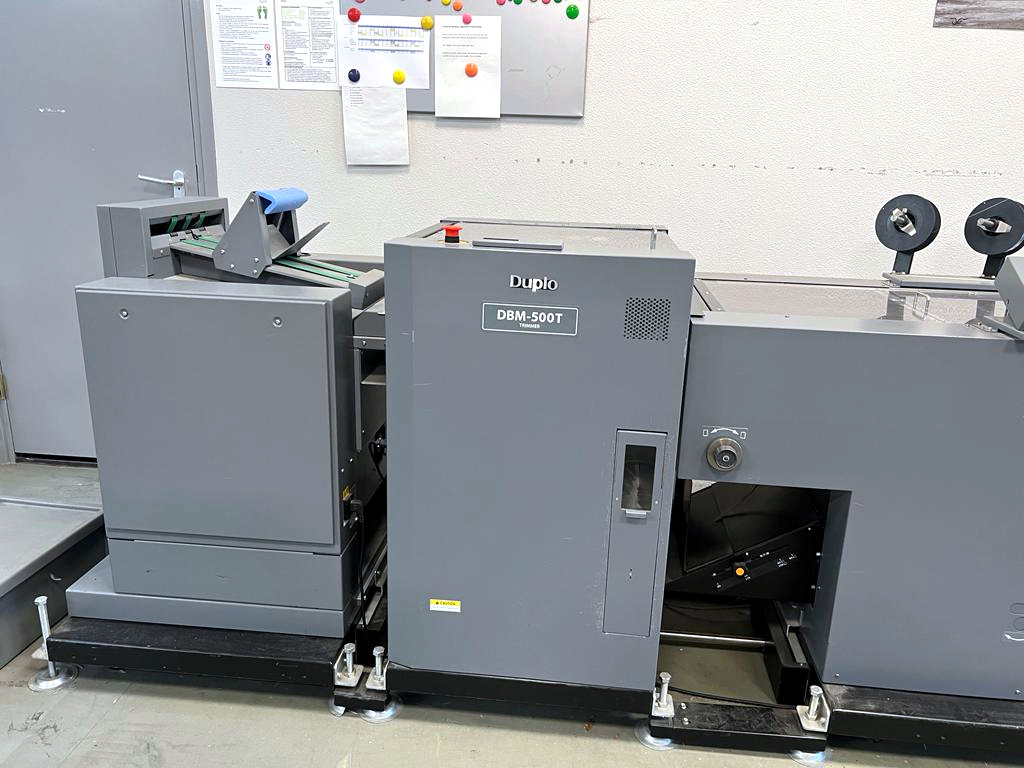

– DBM-500T trimmer (year 02-2007)

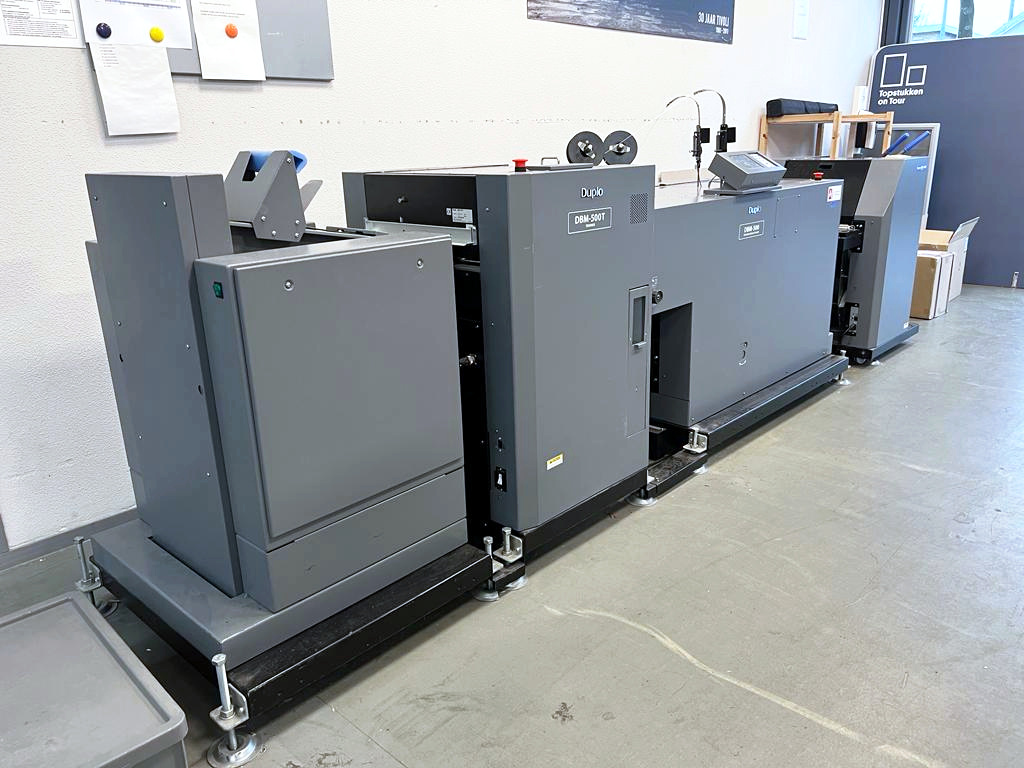

– DSS-350 module for square spine finish for booklets

Technical details DBM-500 dynamic booklet maker
Saddle stitching length 170 to 500 mm, width 120 to 356 mm
Side and corner stitching: B5 LEF, A4 SEF / LEF, B4 SEF (with some exceptions)
No. of stitches 0 to 2
Stich thickness within 5 mm, wire diameter no. 25 to 27
Folding capacity below 25 sheets

Technical details DSS-350 module for square spine finish
Booklet size max. 320 x 230 mm, min. 105 x 85 mm
Speed up to 2.600 booklets per hour
Booklet thickness within 4.2 mm (max. 1 cover/210 gsm + 19 sheets/81.4 gsm)

Condition  used
Availability  direct available
