DGR KM 41 Perfect Binding Line

Reference 12243
Manufacturer DGR
Type KM 41
Year 2016
Specifications DGR KM 41 perfect binding line for production of adhesive bound and thread sewn blocks (hardcover) and brochures (softcover).
This perfect binding line is suitable for on-demand and short run production.

DGR KM 41 perfect binder – year 2016
– basic machine
– infeed
– end sheet feeder
– milling device
– gauzing device
– pre-melter Hotmelt spine glue unit
– Hotmelt spine glue unit
– pre-melter side glue unit
– cold glue side glue unit
– cover feeder
– delivery
– infeed to transportsystem
– technical documentation
– processing of book blocks, brochures or Swiss/Euro brochures
– simple operation by a single operator
– offline or inline operation possible
– special single copy option for individual products

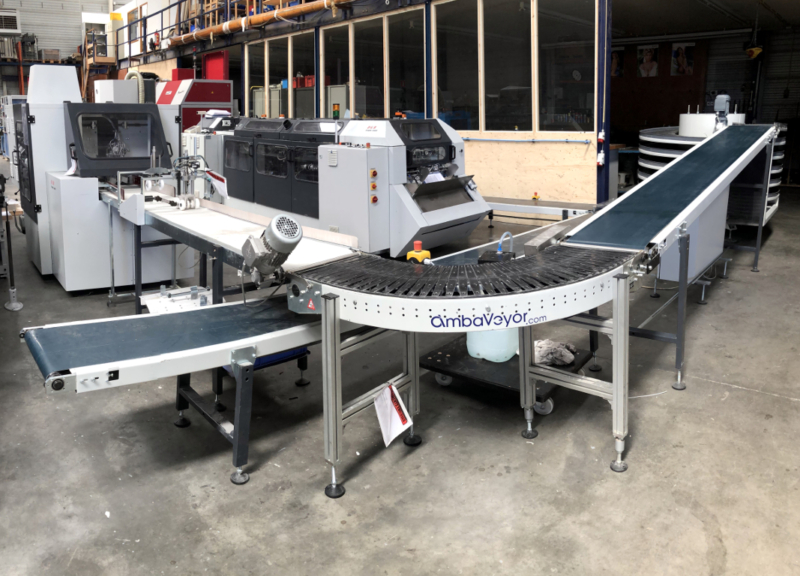

Ambaflex conveyor system with Ambaflex Spiralveyor SV drying tower – year 2012

DGR D09 three knife trimmer – year 2017
– basic machine
– automatic set-up with format input via touchscreen
– central lubrication with hand pump
– adjustment by hand
– automatic material control
– infeed with barcode reader
– pressing device
– trimming device
– trimming waste removal in waste container
– delivery with belt
– stacker
– front cutting unit for cutting of books with folded-in flaps (gate folded covers)
– technical documentation
– offline or inline mode possible
–  automatic thickness control at offline mode

Technical details
KM 41 perfect binder
Mech. speed max. 2400 cycles/h
Book block (W x H)
Max. 300 x 390 mm, Min.  110 x 125 mm
Cover (W x H)
Max. 670 x 395 mm, Min.  220 x 125 mm
Block thickness
3 – 60 mm

D09 three knife trimmer
Mech. speed max. 2400 cycles/h
Format uncutted:
Max. 470 x 320 x 60 mm,  min.  140 x 100 x  2 mm
Format cutted
Max. 420 x 300 x 60 mm, min.  120 x   90 x  2 mm
Cut-off width
Head: max. 25 mm
Tail:   max. 50 mm
Front:  max. 25 mm

Condition used
Available direct available
