Bograma BS Multi 450 S
Reference |
12218 |
Manufacturer |
Bograma |
Type |
BS Multi 450 S |
Year |
2004 |
Specifications |

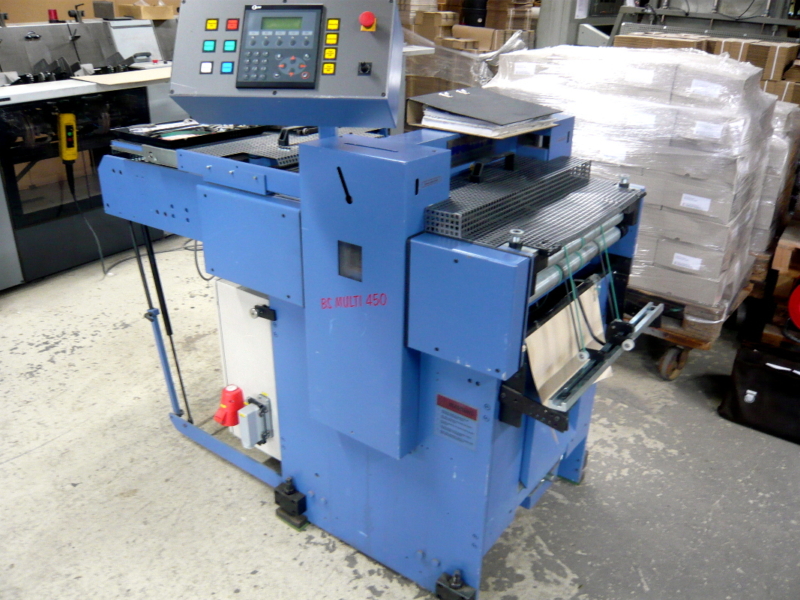

Bograma BS Multi 450 s die-cutting and punch machine
Automatic die-cutting and punch machine for inline operation with folding machines, saddle stitchers etc.
Technical specifications
Feeder                              adjustable belt transfer with lower and upper belts
Feeder length                  900 mm
Feeder swivel area         540 – 940 mm
Exit height                       940 mm
Working width                max. 450 mm
Capacity                            max. 10’500 cycles/h (depending on format and quality)
Max. product thickness perforation up to 2 mm
filing-hole punching up to 5 mm
cutting up to 5 mm
die-cutting up to 2 mm (depending on format and quality)
Equipped with 1 x center cut and 1 x 6 mm cut out knife standard |
Condition |
used |
Availability |
to be discussed |
