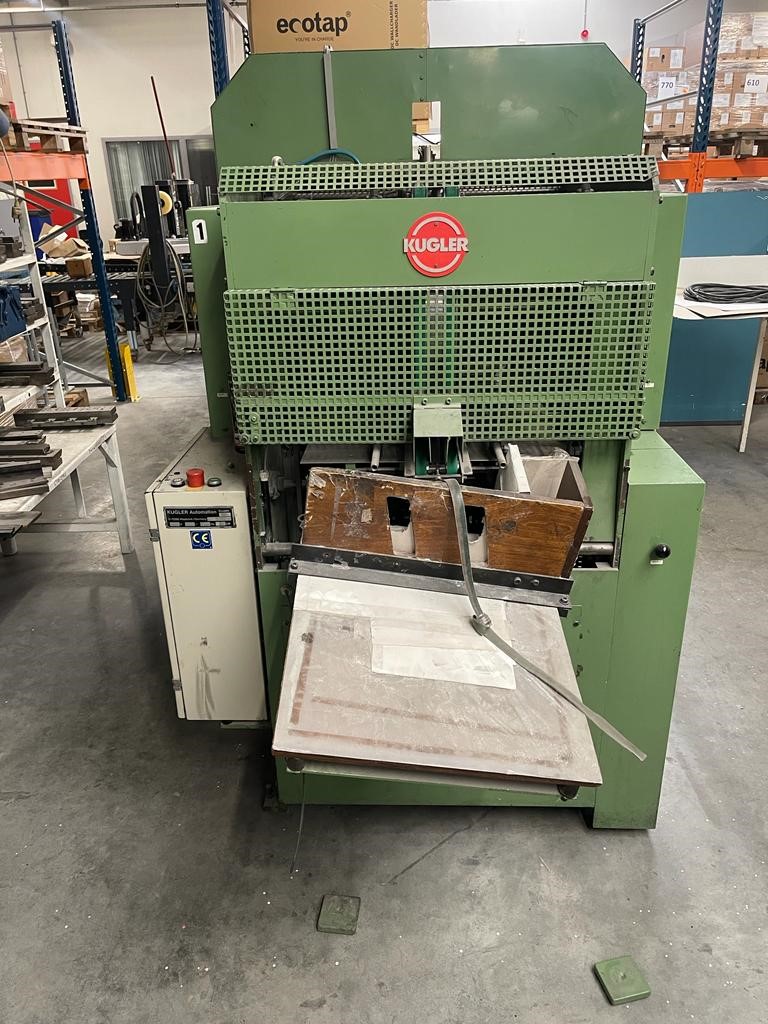

The Kugler automatic punch can punch up to 100,000 sheets per hour: ring binder inserts, calender pages, tab and register-cut sheets made of cardboard and plastic, paper for wire-bound products (spiral and double wire binding) special punching and much more.

PUNCHING SYSTEM SPECIFICATIONS
• continuous feed and unloading for maximum productivity
• materials are taken from the top of the stack for best results on a wide variety of materials
• trouble-free punching of mixed materials (i.e. cardboard and paper)

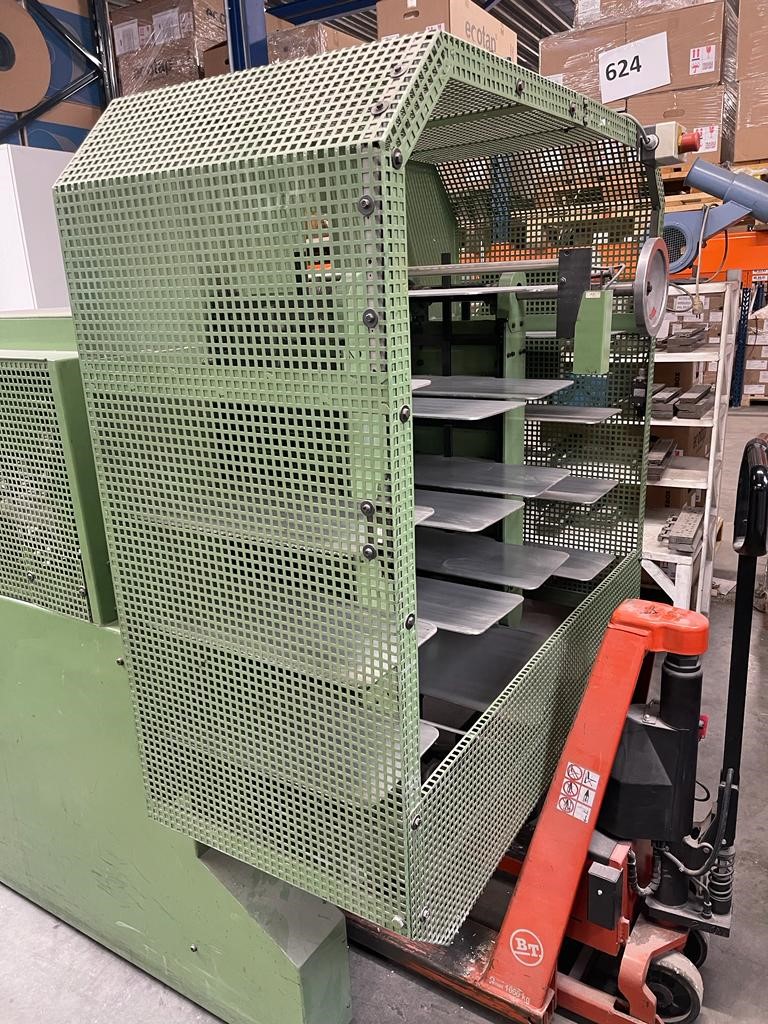

• turn-over drum keeps the punched pages in original sequence
• sheets are aligned precisely just prior to punching for highest accuracy
• format and die changes can be done quickly and involve only a few adjustments

Technical details
Sizes max.: 500 x 500 mm
Sizes min.: 120 x 105 mm
Speed: cycles/min: 60-100
Weight: 1600 kg Machine dimensions: 2.4 x 1.3 m
Power required: 1.8 KW

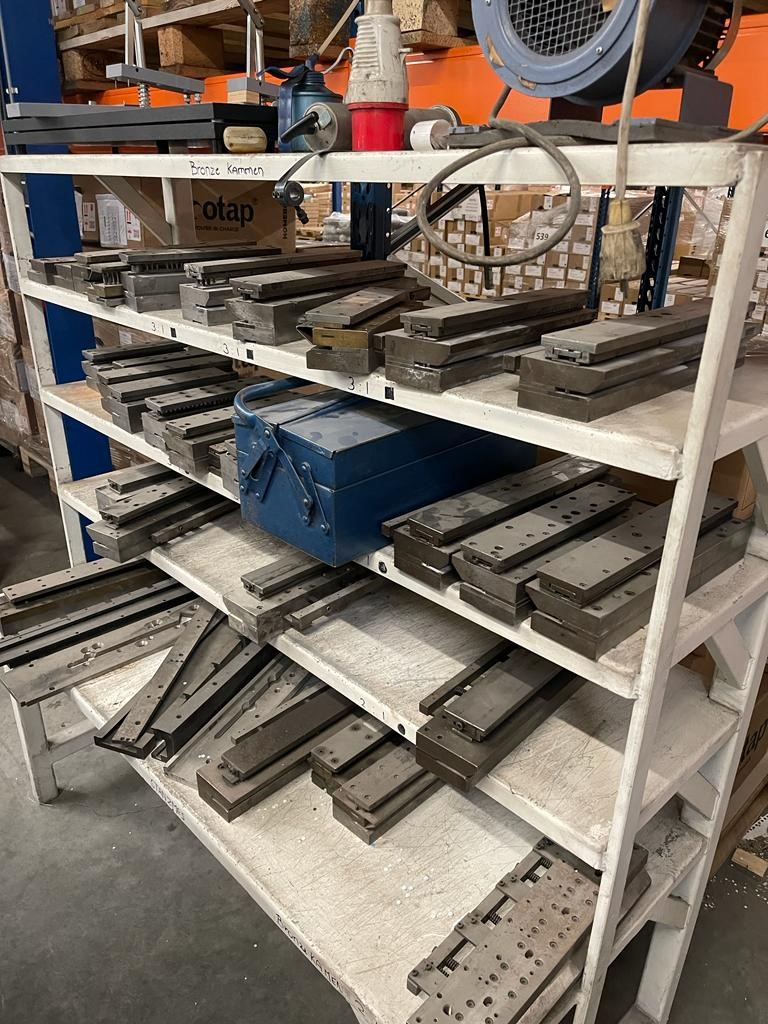

Including the following dies:

• Double die 3:1 4 mm round
• Single die 3:1     4 mm round
• Double die 3:1 4 mm square
• Single die 3:1     4 mm square with calendar tool
• Single die 2:1     6 mm round
