Technical details:
Width of cross seal bar: 450 millimeters
Maximum clearance in height of sealing frame: 200 millimeters
Width of cross seal bar: 18 inches
Maximum production speed (depends on product and film used): Up to 70 packs per minute
Min product size: 76 x 25 x 203 mm (l x w x h)
Working height, adjustable: 76 x 91 cm

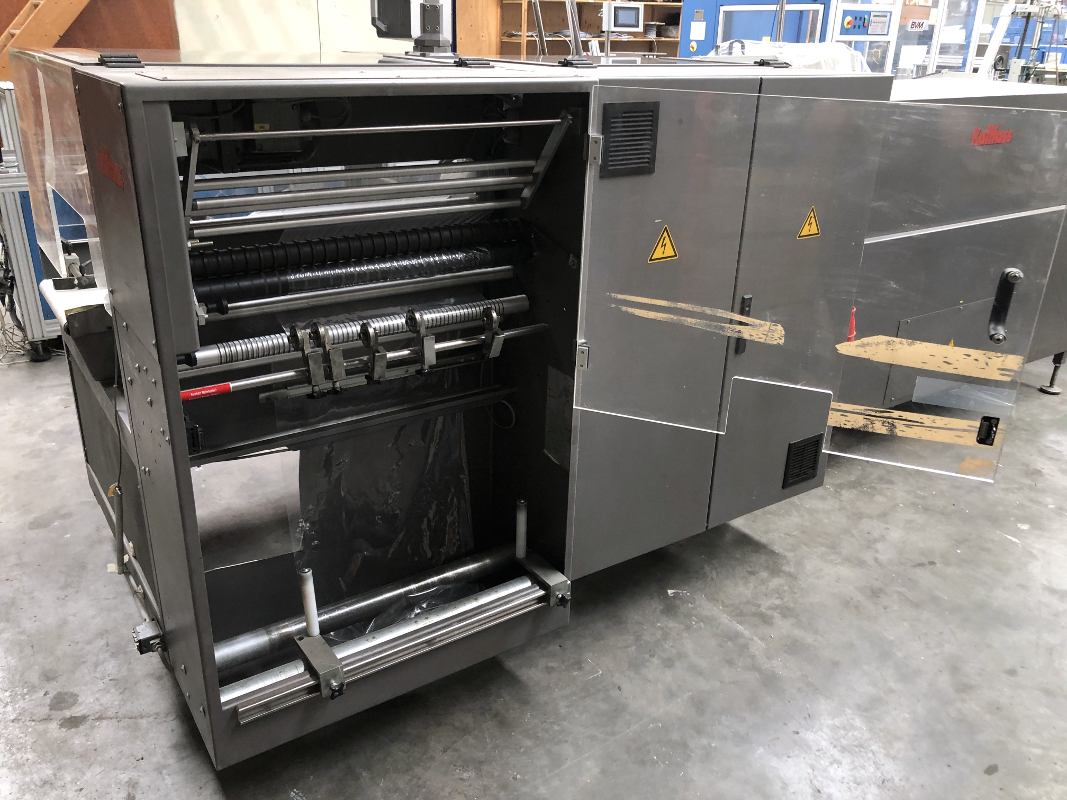

Infeed conveyor can be pulled out for better access during threading of film
Standard center folded film: 45 gauge – 3 mil polyolefin, polyethylene or PVC
Film width: up to 24 inches
Outside diameter of film roll: up to 16 inches
Film cradle close to floor for easy loading
Standard Industrial PLC: Siemens S7 with 250 product settings
Operator guidance and error diagnostic
Color touchscreen panel: Siemens TP 270
Side seal: wheel/knife combination

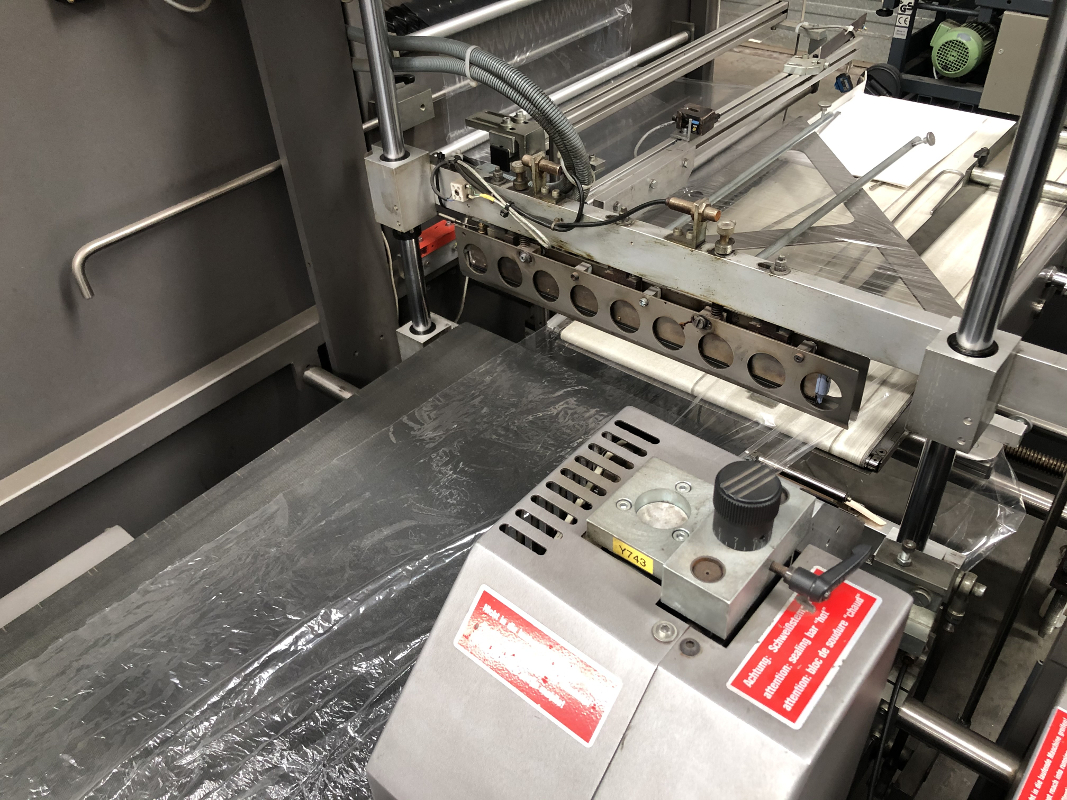

Sealing system: continuously heated cross seal bar with exchangeable sealing ledge – maintenance free, odor free, temperature monitoring and control by PL
